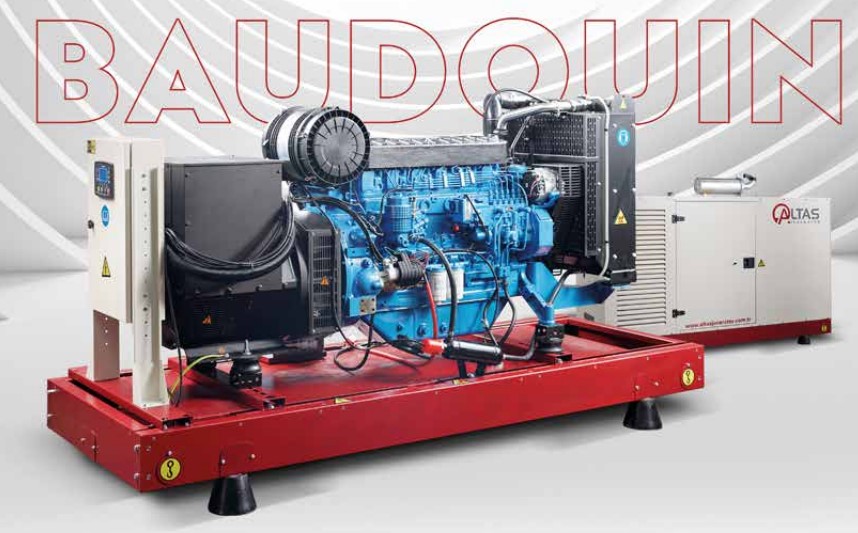

Generatorius AJ-B-25

Dyzelinis elektros generatorius 22KVA

Brand BAUDOUIN

Model 4M06G25/5

Max. Total Output Power (kWm/hp) 25/34

Cubic Capacity (lt) 2,3

Cylinder Arrangement 4 Single Lines

Bore x Stroke (mm*mm) 89*92

Compression Ratio 17,5:1

Governor Type Electronic

Revolution 1500 RPM

Intake System Natural

Spray Pattern Direct

Cooling Pattern Water Cooled

Electric System (VCD) 12

Oil Capacity (lt) 11,5

Cooling Water Capacity (lt) 8,6

Fuel Consumption 50% (lt/h) 3,2

Fuel Consumption 75% (lt/h) 4,5

Fuel Consumption 100% (lt/h) 6,1

ALTERNATOR

Altaç Jeneratör gensets are fitted with European alternators or alternators manufactured for us that are

selected according to project specifications. Only top quality and efficient alternators with maintenance

free pads, electronic voltage regulators with fine voltage settings, 4-pole, self exciting brushless units that

have passed all tests are installed.

Brand XINGNUO

Output Voltage (V) 230/400

Frequency (Hz) 50

Permanent Voltage Reg. (±) 1%

Short Circuit Current 300% (10 sec)

Isolation Class H

Protection Class IP21

Productivity (%) 88

Overload Uptime 110% for one hour

Power Factor (cos Phi) 0,8

Total Harmonic Degradation < 1%

Connection Style Star

Number of Poles 4

Number of Bearings Single
